Capacity Management Table of Contents
The continuing provision of consistent, acceptable service levels, at a known and controlled cost. Capacity Management is the focal point for all IT performance and Capacity issues in the organization. It's goal is 'to ensure that cost justifiable IT Capacity always exists and that it is matched to the current and future identified needs of the business' Capacity Management focuses on the procedures and systems, including specification, implementation, monitoring, analysis, and tuning of IT resources and their resulting service performance. Capacity requirements are based on qualitative and quantitative standards set by the service level management process and specified within the provisions of a SLA or OLA. This process needs to be re-written for confomance with ITIL Version 3. This involves removal of the Demand Management functions/sub-processes to the Service Strategy module.. More...

Introduction to Capacity Management

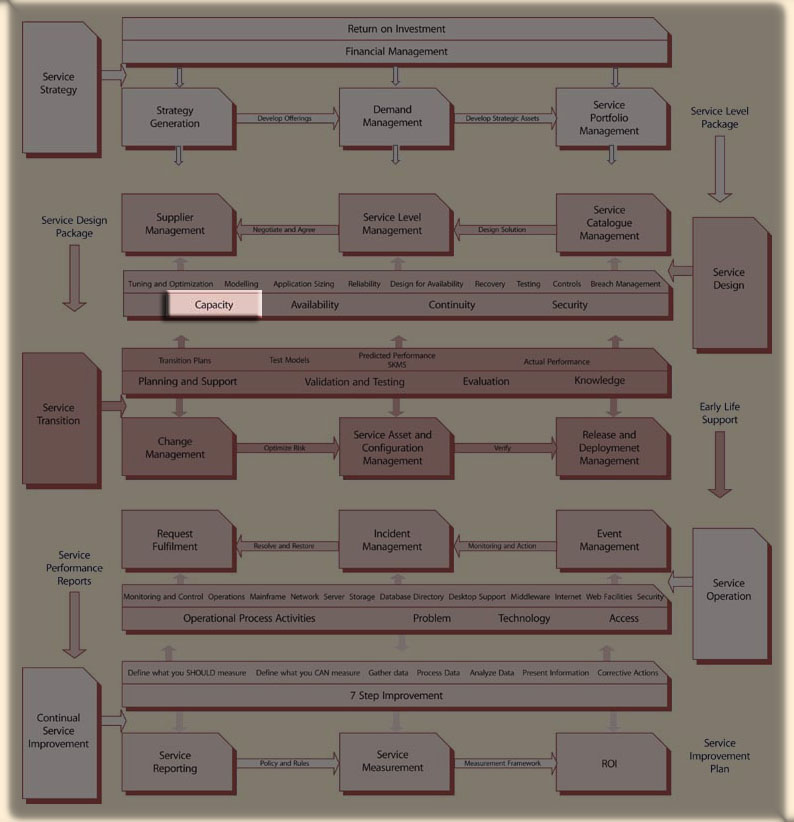

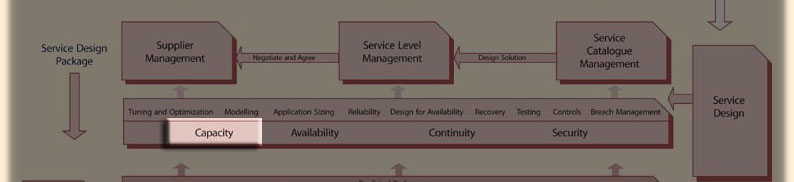

Capacity Management is a process under Service Design in the ITIL Version 3 concept.

• Space - the physical location availability in which to perform the work. For IT there must be sufficient space in which to perform work.
• Labour - the sum of the individuals in the organization and the hours that each individual works.
• Equipment - machines and machine technologies used to make products - usually measured at a component level by the top speed times the hours of operation available.
• Information Technology - the capacity of an organization's computing resources to perform various types of data and information-related functions.
• Material - the inventory that an organization has to been anticipated demand.

An organization will combine the above five types in different ways to get work done. Combining these entities into 'operations' creates new organizational competencies. For example, Labour capacity can be increased by having ready access to a knowledge base. In this case, the capacity of the individual is the same, but the capability and competencies have increased through the combination.

In Essentials of Capacity Management, Thomas Yu-Lee suggests that the five entities can combine three-fold to produce function groupings which turn them into a 'process' capable of performing some type of work. And, Yu-Lee suggests that the quaternary, or operational level, bring together many processes to define the overall capabilities of the organization.^Ref

Thus be can speak of process capacity as a key ability of the organization to achieve competence in using its' capacity wisely. This is particularly true with reference to the relationship of Capacity Management with Availability Management.

In at least one sense, the two processes have conflicting goals. Capacity Management aims to achieve an optimal usage of existing capacity. However, the need for high availability designs may lead the organization towards maintaining system redundancies and backups to ensure continuous or nearly-continuous operations. In this respect, this 'spare' capacity is like equipment 'inventory'. Business Continuity and Disaster Recovery Planning represent the most extreme form of this because they require the ability to re-create operations following a disaster - this 'duplicate', often unused capacity is a form of insurance for the organization.

In essence, high availability application designs create additional capacity. Variations within that design will affect the probability of whether undue stress on the applications will have availability or performance ramifications (ie., system fails or results in lengthy response). The correct design is essentially a function of four application requirements:

• how critical is the application to customers ? - if it is critical they may seek a replacement or develop one of their own.
• how long can the customer tolerate unavailability ? - can a short period of unavailability be tolerated by the customer without incurring significant costs of inconveniences
• are there replacement products on the market ? - can the customer find alternate sources or has the business an essential monopoly on the provision of the product.
• the cost determinants in achieving higher availability ? - generally-speaking high availability designs are decreasing in cost in line with the decreasing costs of machinery.

The goal is to seek an optimum solution between availability and capacity. This solution is based upon the specific objectives to be achieved taking into account constraints which will limit the achievement of the objective. Solving the problem involves applying the constraints to the objective functions and implementing the solution. Component Failure Impact Analysis (CFIA) is a technique which can be used to determine this.

Capacity Management

Objectives

By creating a single point of accountability, IT capacity planning and monitoring should be improved through greater expert usage of capacity techniques, consolidation of resource considerations and better risk assessments recorded in RFCMs and reflected in change management procedures.

The following are some key objectives for Capacity Management:

• Identify IT capacity requirements to meet current and projected workloads in sufficient time to justify and program requirements in the budget process and to acquire and install computing resources before service levels deteriorate.
• Ensure that existing computer and data communications resources are used in the most efficient and effective manner.
• Capacity is measured, and monitored to fully support service level management.
• Shortfalls in the provision of the required levels of capacity and performance are recognized and appropriate corrective actions identified and implemented.
• The frequency and duration of IT failures, due to capacity, is reduced over time.
• IT support organization mindset moves from error correction to service enhancement.

Critical Success Factors

• Adherence to a discrete set of standards which simplify the complexity of the IT infrastructure
• High reliability of the IT Infrastructure components and environment
• Organizational maturity of the IT support organization to maintain and support the IT Infrastructure
• Quality maintenance provided by suppliers
• Deployment of operational process and procedures
• Bypass/circumvention and recovery/restart procedures exist for critical applications

Process Coverage

Scope

Usually In Scope

• hardware - from PCs, through file servers, up to mainframes and super-computers
• networking equipment (LANs, WANs, bridges, routers etc.)
• peripherals (bulk storage devices, printers etc.)
• software - operating system and network software, in-house developments and purchased packages
• human resources, but only where a lack of human resources could result in a delay in end-to-end response time (e.g. overnight data backups not completed in time because no operators were present to load tapes) - in general human resource management is a line management responsibility, though the staffing of a Service Desk might well use identical Capacity Management techniques.

The Capacity Plan is the annual definitive document outlining the organization's plans with regard to needed capacity. It is an offshoot of the business plan and reflects the strategic intent of the organization over the medium and long term. The plan documents current levels of resource utilization and service performance. After consideration of business requirements, it forecasts future requirements for resource for IT services that support the business. The Capacity Plan recommends resource levels required and changes to accomplish operating level objectives in support of the SLA. It includes their cost, benefit, reports of their compliance to IT SLA, their priority and impact to the overall business and the IT infrastructure.

Capacity information may be retained in a capacity management database (CDB - not to be confused with the CMDB - though it might, conceivably, be a logical part of the CMDB). This database needs to be a logical entity containing necessary technical, business, and service level management detail data.

Capacity Management includes:

• Demand Management - to ensure that the future business requirements for IT services are considered, planned, and implemented in a timely manner,
• Workload Management - for translating customer demands into workloads put upon components of IT solutions (the various applications used to create the actual solution), and,
• Resource Management - ensuring that all resources are acquired and implemented in a timely and cost-effective manner.

Usually Excluded

• issues of service continuity or availability are considered under separate processes.
• short-term 'fire fighting' activities (eg., tuning, optimizing, debugging, tracing) or daily/weekly maintenance procedures. These are the responsibility of Operations.

Discretionary

• Major Incident Assistance - direct involvement when required in the restoration of Mission Critical services when capacity issues are deemed to be involved
• all resources in the organization ultimately have capacity elements associated with them. This includes staffing, facilities and materials. While some will clearly be excluded there are areas which the organization might wish to explicitly cover under the umbrella offered by capacity Management. The number of agents and working conditions of the Service Desk is a possible candidate.

Assumptions

• the organization has the competence to utilize capacity management.

Relationship to Other Processes

Financial Management (FM)

Service Level Management (SLM)

Optimization of service performance implies monitoring the application's end-to-end response times. In mature organizations, performance levels are forecast and the monitoring system sets threshold alarms to trigger alerts before the customer of the service is aware of an issue. Automated monitoring tracks performance levels of an IT service. Threshold alarms allow response for out of range conditions.

Availability Management (AM)

Service Continuity Management (SCM)

Change Management (CM)

Configuration Management (CFM)

Problem Management (PM)

Service Desk

Policies and Guidelines

• provide leadership to analyze requirements into measurable transactions for each business unit and its' delivered service
• provide regular updates of Demand, Workload, Performance and Resource Management and the Capacity Management Plan
• define measures for key business unit transactions and the required internal metrics to support those transactions
• provide business units with reports on their key transaction volumes
• provide historical data for both business and internal measures to support trend analysis and the forecasting of additional capacity needs
• provide technical support for the analysis of any measure which exceeds its' limits
• provide leadership for Service Improvement Plans (SIPs) which identify opportunities to balance business capacity needs with their associated costs

How the Process Scales

In most organizations, formal Capacity Management is largely guess work. While some basic trend analysis may be perform to determine straight-line projections of future bandwidth, storage and mainframe CPU usages, attempts at more meaningful analytic models often involve complicated data extractions and predictive modeling beyond the capacity of the organization. Simpler methods and solutions may need to be used initially to demonstrate an initial Capacity Management benefit or to get the program started. The emphasis is one reduced effort and less available expertise. Simplistic approaches usually require the involvement of more staff with a diversity of knowledge and expertise with the resulting additional cost of staff time analysis and meetings.

Capacity Planning will usually originate at the Operational level as individual support units periodically assess the need for additional capacity. Most often, this exercise will be tied into the introduction of new workload associated with a new application's introduction or upgrade. Tactical Capacity Planning is often difficult until the organization has defined it's services (in a Service Catalogue, in SLA or in defined process repositories). Business Capacity analysis will often be undertaken annually following the release of a Business Plan but it's intent is more often to identify operational requirements, than strategic IT investment or service delivery needs.

In early implementations there is a reliance on "snapshot" forecasts and resource predictions. There is no formal ongoing Capacity Management program and data and statistics used for other components, particularly performance, double for Capacity Management purposes.

As business volumes increase 'peak usage' periods can place operational parameters beyond normal limits subjecting parts of the infrastructure to unplanned stresses. Planning for these "spikes" means building in the needed capacities at acceptable costs. There is a need for more complicated analysis including postulates involving ROI calculations the organization may not yet have considered.

Organizationally Capacity issues are considered within their respective infrastructure enclaves. There is unlikely to be a centrally controlled focal point for Capacity issues - though there may be consultations when capacity issues in one area affect those in another.

Concepts

• Focusing awareness for proactive considerations of capacity matters.
• Distinguishing longer term, strategic activities from day-to-day operational tasks.
• Establishing resources with accountability for the Capacity issues.
• Grouping Capacity issues together in a manner which identifies the interdependencies amongst constituent elements and the trade-offs which facilitate optimal capacity within specified cost parameters.

These benefits can accrue to the organization at the strategic, the tactical or the operational level according to how the organization is viewed.

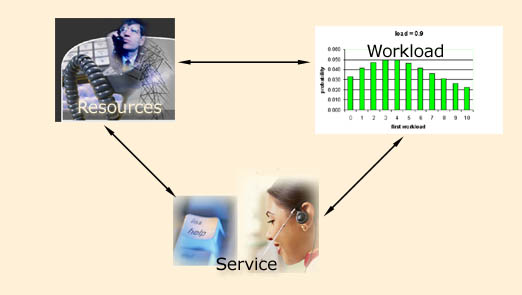

Organizational Views of Capacity Management

• Given a requirement to support a given workload at a given service level, what are the required resources ?
• Given a set of resources and a workload level, what level of service can be provided ?
• Given a set of resources and a service level requirement what workloads can be supported ?

These considerations can be viewed from one of three distinct organizational vantage points:

• Business (Strategic): Strategic capacity management is done when decisions to expand or contract the infrastructure are made due to expected changes in demand by the business (addition of new applications, new infrastructure, etc.).
• Service (Tactical): Tactical capacity management is done when new services are added into the infrastructure (how network devices are configured for services, who can use the capacity, etc.).
• Resource (Operational): Operational capacity management is done by real-time monitoring and adjustments to capacity as needed.

These three levels are linearly related to each other - that is, business processes will direct services which, in turn, establish the boundaries for operational procedures. All three approaches should be covered in the Capacity Plan and the data elements should be rationalized within a Capacity database.

Business Capacity Planning

The driving force for Capacity Management should be the business requirements of the organization. Capacity Management has a close relationship with the business strategy and planning processes within an organization. On a regular basis, the long-term strategy of an organization is encapsulated in an update of the business plans. These plans encapsulate the organization's understanding of the environment in which the business operates. Capacity Management needs to understand these motivational factors and combine them with information on the latest ideas, trends and technologies being developed by the suppliers of computing hardware and software. The emphasis is on identifying technological 'drivers' for business success.

The organization's business plans dictate the specific IT/IS strategy and business plans, the contents of which Capacity Management needs to be familiar with, and to which Capacity Management needs to have had an input. In the IT/IS specific business plans, particular technologies, hardware and software are identified, together with some indication of the timescale in which they are to be implemented.

The Capacity Management process must be responsive to changing requirements for processing Capacity. New services will be required to underpin the changing business. Existing services will require modification to provide extra functionality old services will become obsolete, freeing up spare Capacity.

As a result, the ability to satisfy the Customers' requirements will be affected. Capacity Management needs to predict these Changes and adjust for them.

These new requirements may come to the attention of Capacity Management from many different sources and for many different reasons. They may be generated by the business or may originate from the Capacity Management process itself.

Service Capacity Management

When the business requirements for a service will have come through the Business Capacity Management sub-process, and as the service has become operational, then the Service Capacity Management sub-process is responsible for ensuing that it meets the agreed service targets. The monitored service provides data that can identify trends from which normal service levels can be established. By regular monitoring and comparison with these levels, exception conditions can be defined, identified and reported upon. Therefore Capacity Management informs SLM of any service breaches or near misses.

There will be occasions when Incidents and Problems are referred to Capacity Management from other Service Management processes, or it is identified that a service could fail to meet its SLA targets. On some of these occasions the cause of the potential failure may not be resolved by Resource Capacity Management. For example, when the failure is analyzed it may be found that there is no lack of resource, or no individual component is over-utilized. However the design or programming of the application is inefficient, and so the service performance needs to be managed, as well as individual hardware or software resources.

The key to successful Service Capacity Management is to preempt difficulties, wherever possible. So this is another sub-process that has to be proactive and anticipatory rather than reactive. However, there are times when it has to react to specific performance Problems. From a knowledge and understanding of the performance requirements of each of the services being run, the effects of Changes in the use of services can be estimated, and actions taken to ensure that the required service performance can be achieved.

Resource Capacity Management

This sub-process is concerned with resources such as processors, memory, disks, network bandwidth, network connections etc. so information on resource utilization needs to be collected on an iterative basis. Monitors should be installed on the individual hardware and software components, and then configured to collect the necessary data.

As in Tactical Capacity Management the key to successful Operational Capacity Management is to pre-empt difficulties, wherever possible. Therefore this sub-process has to be proactive and anticipatory. However, there are times when it has to react to specific problems that are caused by a lack of resource, or the inefficient use of resource.

From a knowledge and understanding of the use of resource by each of the services being run, the effects of Changes in the use of services can be estimated. Then hardware or software upgrades can be budgeted and planned. Alternatively, services can be balanced across the existing resource to make most effective use of the resource currently available.

Capacity Activities

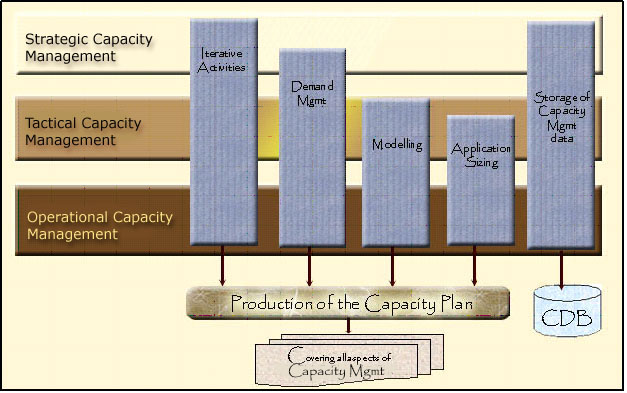

There are four main activities in Capacity Management which support the creation and update of the Capacity Plan:

• Iterative Activities: the monitoring, analysis and tuning of devices and services,
• Demand Management: influencing the demand for and usage of computing resources
• Modeling: predicting the behaviour of IT Services under a given volume and variety of work.
• Application Sizing: estimating the resource requirements to support a proposed application Change or new application.

In addition, a fifth activity involves the maintenance and usage of key capacity information. The Capacity database is a data repository used for this purpose.

Roles and Responsibilities

Capacity Manager

• Owns the Capacity Management process
• Ensures process procedures are followed
• Represents interests of Capacity Management at meetings and functions
• Receives and acquires Senior Leadership support as needed
• Verifies and adjusts parameters used in the planning process
• Adds and reviews system life cycle performance design criteria and production acceptance tests
• Recommends resource re-allocations
• Ensures that the Capacity Plan is current and that it tracks business growth and trends

Capacity Management Team

• Produces Capacity Plan with a forecast far enough ahead to take account of changes in IT capacity that comply with business plans and IT plans
• Documents the need for HW, SW and resource upgrades or additional equipment, based on SLRs, cost constraints, reliability and availability
• Produce regular management reports including current usage of resources, expected trends and forecasts
• Responsible for Capacity Management documentation

Senior Leadership

• Approve resources to meet capacity requirements
• Review and recommend capacity improvement recommendations
• Review summary performance information describing capacity
• Act as the final point of escalation for capacity issues

Operations Management

• provide ongoing maintenance of CIs which affects their operation and institute measures to keep them operating at peak performance
• assist in describing the service chains associated with service provisioning
• participate in discussions of capacity
• meeting Operational Level Objectives and explaining variances from targets.

Line(s) of Business

• negotiate capacity targets and sign-off on targets in Operational and/or Service Level Agreements
• review capacity performance against target and participate in preparation and recommendation of any remedial actions
• participate in preparation and review of Capacity Plan
• provide information on capacity

Performance Measurement

Key Goal and Performance Indicators

• Response time
• Throughput
• Utilization

The capacity model has three principal categories of capacity use: productive, nonproductive and idle. Rated capacity is 100 per cent or 24 hours a day, seven days a week. If a particular resource is being measured, it is the full productive capacity without allowance for repair, setup and other downtime.

Rated capacity = productive capacity + non-productive capacity + idle capacity

• Productive capacity is the resource performing its function fully in support of the IT service.
• Non-productive capacity includes time not in one of the specific idle definitions. These activities are: installation, maintenance, stand-by or other "out of service" conditions.
• Idle capacity includes capacity that is unused, not required, or unavailable due to technical, contractual or business concerns.

  Example Demand calculation

Total demand = number of concurrent users x single user demand unit

  Example Workload Calculation

Workload A = total demand x workload per demand unit for application A Workload B = total demand x workload per demand unit for application B

Example Resource Calculation

MB storage needed = (workload A x MB per workload A unit) + (workload B x MB per workload B unit) CPU power needed = (workload A x CPU power per workload A unit) + (workload B x CPU power needed per workload B unit) Network bandwidth needed = (workload A x network bandwidth per workload A Unit) + (workload B x network bandwidth per workload B Unit)

Measurement Issues

Processes

Capacity process Summary

Inputs

• New technology suppliers

  These are requirement of various businesses for capacity. The requirements will be based upon the line of business's usage of enterprise applications, the network support for their application base and support of COTS software products. The requirements will be expressed in Service and Operational Level Agreements (SLAs, OLAs). When a service described in the service catalog is changed or a new service is devised, an assessment of the ongoing availability requirements for the service needs to be undertaken. This should form part of the definition of Service Level Requirements (SLRs). Changing business needs and consumer demand may require the levels of availability provided for an IT Service to be reviewed. Such reviews should form part of the regular service reviews with the business undertaken by SLM.

• Incident and Problem Data

  Incident and problem information as recorded in Online Services provide base information for the identification of trends in service and, through correlation analysis, assessments of troublesome products and devices (eg. high failure rates).

• Service Level Achievements

  Service Level achievements provide summary information on how established Availability targets are faring over time. Shortages will trigger consideration by Service Level Management of the need for remedial action. Successes will be noted for consideration as best practices and for emulation in other service areas.

• Change Calendar

  Capacity Management will reference the Change Calendar for change events which may have a detrimental impact on capacities. Capacity Management should review this schedule with an eye to types of changes which might carry risks associated with such things as run-away programs which might gobble up system and network resources thereby affecting the response times of large communities or target audiences. Capacity Management should ensure that these risks are mitigated to the greatest feasible extent and that contingencies are developed as part of the Change Plan to call upon capacity reserves or contingency actions in the event of trouble with the implementation(s).

• Configuration and Monitoring Data

  Configuration and anciliary monitoring data provide important information on the architecture of a system. They permit the identification of single points of failure and performance trouble spots which can potentially result in service outages. Monitoring data provides base information for trend analysis to identify problem areas for more intense inspection.

Controls

• Agreements - (SLA, OLA, UC)

  Agreements set the performance objectives which determine the provisioning and attention to be directed to the availability of elements of the infrastructure. SLOs are, by their nature, high level and geared to the user. They are usually a composite of, and contingent upon, the achievement of the intermediate targets of the activities/systems forming the overall service chain. The former are typically expressed in SLA while the latter are found in OLAs or UCs depending upon whether the service provider is internal or external to the organization.

  Once availability goals have been agreed upon with the Customer they are listed in a Service Level Agreement (SLA). Because the delivery of those objectives will inevitably involve multiple participants the realization of this targets needs to be decomposed to detail the performance expectations of all actors involved in their portion of the total service delivery. These requirements are described as Operational Level Objectives (OLOs) and maintained in Operation Level Agreements (OLAs) or in Underpinning Contracts (UCs) the choice depending upon whether the participant is internal to the organization or an external service provider. The description of the latter should include more legal language as well as performance penalties in the event of non performance.

• Business Strategy and Plans

  Business strategies will contain guidelines for Capacity Management to plan capacity needs in the future. New application developments, changes in breadth of coverage for existing services and higher demands and workloads described in business plans and strategies will need to be translated by Capacity management in capacity scenarios for their consideration.

• Financial Plans and Budgets

  Funding and IT investment decisions determine the total amount of funding accessible for availability initiatives. These decisions are products of an overall business strategy and, as such, provide an important component in ensuring alignment between business and IT decision-making.

• IT Strategy and Plans

  Strategic decisions and plans will influence the kinds of capacity scenarios which can be advanced and the weightings attached to various options for consideration.

Mechanisms

• Customer Relationship Management

  Capacity Management negotiates with Application Support and lines of business the capacity requirements of corporate service support for the costs identified as charge-back for response metrics agreed-upon. Negotiations are re-enterred when capacity short-falls are identified and capacity improvement initiatives recommended.

• Integrated Project Management

  Many Capacity improvement activities are undertaken using structured Project Management methodologies. The maturity of the Project Management process will directly affect how well the Capacity Management process will works. Supporting activities for this mechanism include:
  • project management framework: a general project management framework which defines the scope and boundaries of managing projects, as well as the project management methodology to be adopted and applied to each project undertaken is established and periodically reviewed. The methodology should cover, at a minimum, allocation of responsibilities, task breakdown, budgeting of time and resources, milestones, check points and approvals. Develop project plans which:
  • system quality assurance plan: The implementation of a new or modified system include the preparation of a quality plan which is then integrated with affected project plans and formally reviewed and agreed to by all parties concerned,
  • formal project risk management: a formal project risk management program for eliminating or minimizing risks associated with individual projects (i.e. identifying and controlling the areas or events that have the potential to cause unwanted change) is used.

• IT-Business Alignment

  This mechanism is used to ensure that IT directions and plans conform to business directions. Alignment is achievement through a strategic planning processes. These processes should include:
  • Information Technology as part of the organization's long- and short-range plans: Developing and implementing long- and short-range plans that fulfill the organization's mission and goals. Information technology issues as well as opportunities are adequately are assessed and reflected in the organization's long- and short-range plans and conveyed consistently throughout the entire organization.
  • Information Technology Long-Range Plan: Information technology long-range plans supporting the achievement of the organization's overall missions and goals are regularly updated. A structured long-range planning process is used.
  • Information Technology Long Range Plan Changes: a structured approach regarding the long-range planning process is applied. resulting in a high-quality plan which covers the basic questions of what, who and how. Aspects which need to be taken into account and adequately addressed during the planning process are organizational changes, technological evolution, regulatory requirements, business process re-engineering, staffing, in- or out-sourcing, etc. The plan will refer to other plans such as the organization quality plan and the information risk management plan.
  • Short Range Planning for the Information Services Function: the information technology long- range plan is regularly translated into information technology short range plans. these short-range plans ensure that appropriate information services function resources are allocated on a basis consistent with the information technology long-range plan. The short range plans are re-assessed periodically and amended as necessary in response to changing business and information technology conditions. The timely performance of feasibility studies should ensure that the execution of the short range plans is adequately initiated,
  • Assessment of Existing Systems: Existing information systems are assessed in terms of degree of business automation, functionality, stability, complexity, costs, strengths and weaknesses, in order to determine the degree to which the existing systems support the organization's business requirements.

• Measurement and Reporting

  Define relevant performance indicators, the systematic and timely reporting of performance and prompt acting upon deviations to ensure the achievement of the performance objectives set for the IT processes. It includes:
  • Collecting Monitoring Data: relevant capacity indicators (e.g., benchmarks) from both internal and external sources have been defined and data collected for the creation of management information reports and exception reports regarding these indicators,
  • Assessing Performance: measure capacity and compare it with target levels. Perform assessments of capacity on a continuous basis,
  • Assessing Customer Satisfaction: Measure customer satisfaction with response, workload, etc at regular intervals to identify shortfalls in service levels and establish improvement objectives,
  • Management Reporting: Provided management reports for senior management's review of the organization's progress toward capacity targets. Upon review, appropriate management action is initiated.

• Continuous Improvement

  Quality management standards and systems are maintained by providing for distinct development phases, clear deliverables and explicit responsibilities. Capacity needs to be continually advanced through processes of continuous improvement so that organizational learning can be captured for the benefit of the enterprise.

  Six Sigma is a useful measurement-centric approach and methodology for eliminating defects in any process. DMAIC (define, measure, analyze, improve, control) is an improvement sub-methodology within Six Sigma which can be applied to existing processes to sponsor continuous improvement. It requires the organization to establish availability performance baselines (which should be negotiated in SLA/OLA,UC), analyze and determine the root cause(s) of defects, and modify processes to reduce defects.

• Risk Management

  Threat-Risk Assessments of the relevant information risks to the achievement of the business objectives form a basis for determining how the risks should be managed to an acceptable level. These should provide for risk assessments at both the global level and system specific levels (for new projects as well as on a recurring basis) and should ensure regular updates of the risk assessment information with results of audits, inspections and identified incidents.

• Change Management

  Change Management procedures may be the subject of recommendations contained in Capacity Improvement initiatives. In addition, any changes to procedures, hardware and software identified as part of an internal availability or recovery review or any recommendations designed to improve overall availability must be subject to internal Change Management processes.

  In addition, Change Management promotes enhancements to capacity by:

  • Maintaining Change Schedule: An accessible record of all past and upcoming changes is maintained and the impact amongst changes occurring within an established timeframe considered for risks to overall availability ,
  • Authorized Maintenance: Ongoing maintenance with established maintenance periods is approved by Change Management. This minimizes overall system disruption by restricting it to non essential or low transaction volume periods. Maintenance personnel have specific assignments and that their work is properly monitored with established deadlines for its' completion within the time period. In the event that problems occurring there are established procedures for handling extensions to the window or backing out the changes to restore the previous environment while system unavailability still has controllable impacts.

• Problem Management

  The Problem Management process may select to investigate infrastructure faults which impact User response times. Capacity Management may participate in Root Cause Analyses initiated and coordinated by Problem Management.

• Integrated Supplier Management

  Existing agreements and procedures are reviewed for their effectiveness and compliance with capacity goals procedures. This will include:
  • identifying third-party providers' services and documenting technical and organizational interfaces with them,
  • maintaining quality relationships with suppliers,
  • defining specific procedures (based on required processing levels, security, monitoring and contingency requirements, and other stipulations as appropriate) to ensure that a fair Underpinning Contract is in existence with the supplier,
  • ensure Service Continuity Management considers business risk related to the service providers in terms of legal uncertainties and the going concern concept,
  • ensure that security agreements (e.g. non-disclosure agreements) are identified and explicitly stated and agreed to, and conform to universal business standards in accordance with legal and regulatory requirements, including liabilities,
  • monitor the service delivery of external Provider support to ensure the adherence to the contract agreements

Outputs

• HW / SW Upgrades

  A key physical output of Capacity Management is the introduction of new, more powerful, stable hardware and software products into the infrastructure. The following types of upgrades specifically address capacity 'tuning' issues.
  • Balancing workloads - Transactions may arrive at the host or server at a particular gateway, depending where the transaction was initiated. Balancing the ratio of initiation points to gateways could provide tuning benefits.
  • Balancing disk traffic - Storing data on disk efficiently and strategically, for example, striping data across many spindles may reduce data contention.
  • Definition of an accepted locking strategy - Specifies when locks are necessary and the appropriate level, for example, database, page, file, record, and row. Delaying the lock until an update is necessary may provide benefits.
  • Efficient use of memory - May include looking to utilize more or less memory depending upon the circumstances. A process may utilize resources more efficiently if data is read into memory and manipulated there rather than a sequential read through files. Alternatively, many processes may be contending for memory resource. The excessive demands may lead to increased CPU utilization and delays while pages are swapped in and out of memory.

• Capacity Database/Plan Updated

  Annually the Capacity Plan (should be coordinated with Availability Plan) will be updated to accommodate new financial, political and technological realities.

• Service Level Requirements (SLR) Updated

  Capacity Management activities may result in an update to the service Level requirements of one or more business lines. These changes will be taken into account by Service Level Management (SLM) during negotiation or re-negotiation of SLAs and the constituent OLAs and UCs which support them.

• Financial and Strategic Plans

  Capacity requirements may provide recommendations which need to be accommodated in financial and/or strategic plans.

• RfC Updated for Capacity Impacts

  Review of the Change schedule and specific RfC may result in revisions to the RfC to accommodate the concerns of Capacity Management.

Process Activities

CapM1 - Business Capacity Management

The Capacity Management process must be responsive to changing requirements for processing Capacity. New services will be required to underpin the changing business. Existing services will require modification to provide extra functionality Old services will become obsolete, freeing up spare Capacity.

As a result, the ability to satisfy the Customers' SLRs will be affected. It is the responsibility of Capacity Management to predict these Changes and cater for them. These new requirements may come to the attention of Capacity Management from many different sources and for many different reasons. They may be generated by the business or may originate from the Capacity Management process itself. Such examples could be a recommendation to upgrade to take advantage of new technology, or the implementation of a tuning activity to resolve a performance Problem.

CapM1.1 - IT Strategic Planning

CapM translates these business requirements into capacity 'language' - that is services and component needs. This is done for each line of business and then aggregated in ways which identifies commonalities and areas where resources might be efficiently shared without presenting unacceptable risks to a business area from that sharing.

CapM1.2 - Review Resource Performance

CapM1.3 - Review SLA Performance

CapM1.4 - Develop Capacity Plan

The Capacity Plan needs to show what capacity is needed in the future and at what cost. It should also predict what hardware upgrades or additional equipment would be needed to meet future service level objectives. It needs to also include information on sizing of any new systems proposed. It needs to reflect cost constraints and availability or reliability requirements.

The plan should discuss current utilization rates and service performance. It should be based upon business strategies and explicitly recognize business strategic and operational plans and forecasts in its' estimates of future requirements. Recommendations should include estimates of necessary resources, relevant impacts, associated costs and benefits, etc.

A Capacity Plan template
is included in the Appendix.

CapM1.5 - Review Capacity Plan

CapM1.6 - Review SLA and Service Catalogue

CapM2 - Service Capacity Management

CapM2.1 - Review Service Catalogue and OLAs

The service catalogue should be reviewed for service capacity business impact analysis (BIA), a return on investment (ROI) analysis, capacity implications for IT service continuity planning, and as an initial baseline when for workload related issues and demand management feedback.

CapM2.2 - Demand Management

The influence on the services that are running could be exercised by:

• Physical constraints - it may be possible to stop some services from running at certain times, or to limit the number of customers who can use a particular service, for example by limiting the number of concurrent users. The constraint could be implemented on a specific resource or component, for example by limiting the number of physical connections to a network router or switch.
• Financial constraints - If charging for IT services is occurring, reduced rates could be offered for running work at certain times of the day, that is the times when there is current less demand for the resource.

CapM2.3 - Workload Management

Identifying trends are difficult without a large volume of statistics, so the data must be collected over a good length of time. The types include online, batch, and network, to effectively translate both current and proposed customer demand into workloads. Classification of workload types is generally called the "workload catalogue." The next step is to analyze and understand the trends of each workload, discovering when peaks occur and why they happen. This investigation should encompass short, medium and long-term trends. Workload catalog, peak load analysis, and operating level requirements all contribute to the production of the forecast report(s).

CapM3 - Operational Capacity Management

CapM3.1 - Maintenance - Monitoring

Most monitoring tasks are near term in nature, and rely on underlying tools and principles for operations. The collected information must be recorded or sampled over a determined period. The amount of sampling and resources required to do so must be examined also. The capacity management database (CDB) should contain information points to identify historical trends and patterns.

Data needs to be gathered at total resource utilization level, but also at a more detail profile for the workload that each service places on each particular resource. This needs to be carried out across the whole infrastructure, host or server, the network, local server, application and client-side or workstation. Similarly, data needs to be collected for each service, for example, availability and a user screen response time.

Part of the monitoring activity is of a baseline or profiles of the normal operating levels. If thresholds beyond the norm are exceeded, alarms are raised and exception reports produced. These thresholds and baselines are determined from the analysis of previously recorded data, and can be set on:

• Individual components, for example, monitor that the utilization of a CPU does not exceed 80% for a sustained period of one hour
• Specific services, for example, monitor that the presentation time of a web page does not exceed 3 seconds or the transaction rate does not exceed 1000 transactions per minute.
• It is also important to remember monitoring takes up system capacity, thus can influence the performance of the system. Focus performance measurement and monitors on client service level agreements (SLAs). Operating level requirements and other necessary elements for monitoring often fall out of their overall contribution to meeting the SLA. Monitor at successive levels of control (for example, key IT layers: network, OS, hardware, application, and so on) to ascertain OLOs are met.

The operating system, applications management, associated hardware agent, and systems management tools may dictate which monitors are most readily available. Business rules can correlate element data to service levels in many cases. Many monitors are included as part of the operating system, or free as part of a hardware and software vendor solution, while others form part of a larger systems management tool set and need to be evaluated and purchased separately. It is important that the monitors can collect all the data required by the capacity management process, for a specific component or service.

CapM3.2 - Maintenance- Analysis

Data monitored and collected is analyzed for identification and adjustment of thresholds and alarms. In reactive organizations these will trigger exception reports and/or which then need to be analyzed and reported upon, and corrective action taken. Ideally, all thresholds should be set below the level at which the resource is over-utilized or below the targets in the OLA or layered OLO. This enables capacity management to take corrective action before the targets in the OLAs have been breached, or the resource has become over-utilized and there has been a period of poor performance.

In proactive organizations, the data collected from the monitoring should be analyzed to identify trends from which the normal utilization and service level, or baseline, can be established. By regular monitoring and comparison with this baseline, exception conditions in the utilization of individual components or service thresholds can be defined, and breaches or near misses in the OLAs can be reported. In addition, the data can be used to predict future resource usage.

Analysis of the data may identify issues of:

• Contention (data, file, memory, processor)
• Inappropriate distribution of workload across available resource
• Inappropriate locking strategy
• Inefficiencies in the application design
• Unexpected increase in transaction rate
• Inefficient use of memory

The use of each resource and service needs to be considered over the short, medium, and long-term, and the minimum, maximum and average utilization for these periods recorded. Over time, the trend in the use of the resource by the various IT services becomes apparent.

One key to determining whether a solution is operating at an acceptable level is latency, or the length of time a user has to wait for a response once a request for information is complete. Heavy workload on a server might create unacceptable wait times even though the server may be capable of handing every request. As a rule try to isolate components that have repeatable, high percentage contribution to performance levels and report them at varying workloads.

It is important to understand the utilization in each of these periods, so that changes in the use of any service can be related to predicted changes in the level of utilization of individual resources. The ability to identify the specific hardware or software resource on which a particular IT service depends, is improved greatly by an accurate, up-to-date and comprehensive CMDB. Any relevant detail performance information should be related or reside and maintained in the capacity database (CDB).

When the utilization of a particular resource is considered, it is important to understand both the total level of utilization and the utilization by individual services of the resource.

The analysis and tuning activities may also benefit from general observations and guidelines in the Guidelines for Effective Capacity Management and Designing Information Technology Solutions for scalabilitysections in this document.

CapM3.3 - Maintenance - Tuning

The analysis of the monitored data may identify areas of the configuration that could be tuned to better utilize the system resource or improve the performance of the particular service.

Tuning techniques that are of assistance include:

• balancing workloads - transactions may arrive at the host or server at a particular gateway, depending where the transaction was initiated; balancing the ratio of initiation points to gateways can provide tuning benefits
• balancing disk traffic - storing data on disk efficiently and strategically, e.g. stripping data across many spindles may reduce data contention
• definition of an accepted locking strategy - specifies when locks are necessary and the appropriate level, e.g. database, page, file, record, and row - delaying the lock until an update is necessary may provide benefits
• efficient use of memory - may include looking to utilize more or less memory depending upon the circumstances.

Regarding the efficient use of memory, note that a process may utilize resources more efficiently if data is read into memory and manipulated there rather than a sequential read through files. Alternatively, many processes may be contending for memory resource. The excessive demands may lead to increased CPU utilization and delays while pages are swapped in and out of memory.

Before implementing any of the recommendations arising from the tuning techniques, it may be appropriate to consider using one of the on-going, or ad hoc activities to test the validity of the recommendation. For example, 'Can Demand Management be used to avoid the need to carry out any tuning?' or 'Can the proposed Change be modelled to show its effectiveness before it is implemented'.

CapM3.4 - Component Upgrade

The implementation of any Changes arising from these activities must be undertaken through a strict, formal Change Management process. The impact of system tuning changes can have major implications on the Customers of the service. The impact and risk associated with these types of changes are likely to be greater than that of other different type of changes. Implementing the tuning Changes under formal Change Management procedures results in:

• less adverse impact on the Users of the service
• increased User productivity
• increased productivity of IT personnel
• a reduction in the number of Changes that need to be backed-out, and the ability to do so more easily
• greater management and control of business critical application services.

It is important that further monitoring takes place, so that the effects of the Change can be assessed. It may be necessary to make further Changes or to regress some of the original Changes.

CapM3.5 - Resource Demand Management

CapM identifies and quantifies resource usage. A good Capacity forecast will anticipate and plan for peak demand. Modeling assists in peak load analysis to create workload resource usage forecasts. Models of baseline versus actual data allow the informed reduction of the data to provide valuable information fed into the CDB for important outputs from capacity management.

To influence demand, the IT Provider may find it useful to implement charge back for IT services, so that different rates can be assessed to control demand and distribute resources more optimally. This activity can be carried out as a short-term requirement because there is insufficient current capacity to support the work being run, or, as a deliberate policy of IT management, to limit the required capacity in the long term.

Short-term demand management may occur when there has been a partial failure of a critical resource in the IT infrastructure. For example, if there has been a failure of part of the memory on a processor, it may not be possible to run the full range of services. However a limited subset of the services could be run.

CapM3.6 - Application Sizing

Application sizing exercises are initiated at the Project Initiation stage for ew applications or when there is a major Change of an existing application, and are completed when the applications are accepted into the operational environment. During the initial systems analysis and design the required service levels must be specified. This enables the application development to employ the pertinent technologies and products, in order to achieve a design that meets the desired levels of service. It is much easier and less expensive to achieve the required service levels if the application design considers the required service levels at the very beginning of the application lifecycle, rather than at some later stage.

Other considerations in application sizing are the resilience aspects that it may be necessary to build into the design of the new application. Capacity Management is able to provide advice and guidance to the Availability Management process about the resources required to provide the required level of resilience.

The sizing of the application should be refined as the development process progresses. The use of modelling can be used within the application sizing process. The SLRs of the planned application developments should not be considered in isolation. The resources to be utilized by the application are likely to be shared with other services and potential threats to existing SLA targets must be recognized and managed. When purchasing software packages from external suppliers it is just as important to understand the resource requirements needed to support the application. Often it can be difficult to obtain this information from the suppliers, and it may vary, depending on throughput. Therefore, it is beneficial to identify similar Customers of the product and to gain an understanding of the resource implications from them. It may be pertinent to benchmark trial the product prior to purchase.

CapM3.7 - Maintaining Capacity Management Database

The importance of the CDB is shown by its being the central repository for capacity and performance related information. The database collects much of the data input listed earlier. It collects information about workload, and performance, for example, of how heavily a customer relationship management database is being used, and data allowing trends for future forecasted growth of storage requirements. It provides information for producing reports, the capacity plan, monitoring performance, managing resources, and demand.

In the introduction of capacity management inputs, outputs and sub processes to capacity management were illustrated by diagram above. Most all inputs have associated detail that must be captured within the capacity management database in order to process and produce the required outputs.

Information retained in a CDB might include:

• Financial data – costs
• Hardware data
• Development data
• Service data - problem/change
• Contingency data - hardware, and so on
• Technical data - availability data, and so on
• Business data - future direction and strategy
• Other detail input for the CDB includes:
• Capacity plan - current in place; DTP software
• Model generators - parameters for sizing and modeling
• Sizing software results
• Modeling software results
• Resource utilization monitors - threshold exceptions
• Service level management - threshold exceptions
• Other performance/surveillance software
• Workload performance monitors
• Charging software
• Business forecast detail
• Cost planning software
• Outputs that should be enabled by CDB information are: Service level management guidelines
• Reports - resource utilization exceptions, SLM exceptions, and so on
• Forecasts
• Capacity plan
• Other recommendations for change - tuning

Capacity management issues can dramatically affect the business if they cause unplanned downtime of a vital business function. This requires considerations for capacity and availability management to be intertwined and solution designs consistent. Service continuity management is weighing risk versus cost for scenarios outside the normal availability design. Its contingency planning relies on capacity forecast and recommendations to move forward in documenting a chosen contingency measure. It follows, that the clear and distinct requirements of each process have correlated capacity and performance data identified and properly recorded in the CDB. It is important capacity detail data in the CDB relates to OLA and associated OLA and/or SLA information is tracked in the configuration management database (CMDB). Because there is an implied dependency of availability management information on the proper integration of performance and capacity measurement data, capacity and availability staff often shares common monitoring tools and management solutions.

Appendix

COBIT Performance and Capacity Maturity Variations

Process Implementation Recommendations^R

A clear set of objectives

Senior management commitment

Process/flow definition

• All the in-bound information flows that will be required
• The organizational impact and any required changes
• The ways in which the work done by the team will be directed by the organization's needs
• The ways in which the team's findings will be disseminated and used.

A realistic plan

Recruit or retrain the right people

An effective capacity management team member really needs to have a foot on both the business and the technical community. Remember that Capacity Management is a business discipline with technical implications - not the other way round!

Acquire the right toolset

• Performance and resource consumption monitors for all system components which contribute to the delivered service
• A mechanism for storing that data in a central repository
• A mechanism for importing business data, and any other data that would provide further understanding of the relationship between the business workload (measured in Natural Forecast Units) and IS workloads
• A facility to generate regular reports automatically, across the complete range of business and system data in the repository, and to distribute those reports in an appropriate manner to the target audience (typically using html and the corporate intranet)
• A mechanism to produce ad-hoc reports and to 'drill down' into the data for problem diagnosis
• A trending facility for use on those aspects of the data for which linear extrapolation is a valid technique
• A performance prediction facility that will allow the non-linear behaviour of systems experiencing resource contention to be taken into account. This will usually be based on some form of analytical modelling.

Walk before you start to run

Iterative evolution

Toolset Considerations

Monitoring Agents

Some types of problem tracking or call management systems market themselves as having service level management functionality. In some ways, this is correct: many businesses use standard help desk tools to report on network availability, overall system availability, and customer service levels based on the types of trouble tickets received. This kind of "service level management" is, by nature, purely reactive, relying as it does on after-the-fact information capture of service failures. These tools also provide no mechanism for tying performance to business goals.

Still other types of systems will be a little closer to a mature implementation of SLM by using test transactions to simulate customer/end user activity. Essentially, these systems send a 'synthetic transaction" through standard customer system, timing them and monitoring for difficulties. Obviously, these systems confine themselves to network and application service level management, although they can make some measure of business success by examining employee productivity (or lack thereof, due to system problems) or customer system experience.

Web monitoring systems are becoming more prevalent. These systems examine the service experienced by web site users, and may also use test transactions to measure web site access events. There are also service level management systems that focus on specific technologies, such as VOIP, or on particular industries (telecom, ISPs).

Management support tools

• Service management tools
• Application management tools
• Infrastructure management tools

Enterprise management frameworks typically focus on infrastructure management, however they often include comprehensive product suites that integrate tools and information across these categories and may also integrate with other vendor products or feed information into products that also provide application and service management For more information see Service Monitoring and Control in the MOF Operations Guide. Capacity and availability management requirements for information and support tools are similar. Typically application management tools directly address these needs, but the processes also leverage information supplied by service management and infrastructure management support tool categories.

Service Management Tools

Application Management Tools

Infrastructure management tools

Capacity Plan Template

Introduction

Scope of the plan

Methods used

Management summary

Strategic Business Scenarios

Tactical summary

Forecasted service levels

Operational summary

Resource forecasts

Options for service improvement

Cost model

Recommendations

The recommendations should quantify business benefits to be expected, potential impact of carrying out the recommendations, risks involved, resources required, and both startup and ongoing costs.

Typical reports or capacity recommendations need to address the following areas:

• The number of users supported by the current hardware
• scalability options if the number of users increases
• scalability options if the solution complexity increases
• Recommended changes in monitoring, analysis, or tuning
• Identify potential bottlenecks
• Performance guidelines for design and development
• Prediction of future service performance
