Continual Service Improvement

1Introduction 2Serv. Mgmt. 3Principles 4Process 5Methods 6Organization 7Consideration 8Implementation 9Issues AAppendeces

8. Implementing Continual Service Improvement

This publication has discussed implementing CSI from two perspectives. First and foremost is the implementation of CSI activities around services. Second is the implementation of CSI around service management processes. However, if your organization does not have very mature service management processes then it is usually difficult to execute The 7-Step Improvement Process for services.

Immature processes usually have poor data quality if any at all. This is often due to no processes or very ad hoc processes. Other organizations have multiple processes working with multiple tools being used to support the processes. If any monitoring is going on it may be at a component or application level but not from and end-toend service perspective. There is no central gathering point for data, no resources allocated to process and analyse the data, and reporting consists of too much data broken into too many segments for anyone to analyze. Some organizations don't have any evidence of reporting at all.


Before implementing CSI it is important to have identified and filled the critical roles that have been identified in Chapter 6. This would include a CSI Manager, Service Owner and reporting analyst. A Service Level Manager is really needed to be the liaison between the business and IT.

Monitoring and reporting on technology metrics, process metrics and service metrics need to be in place. Internal service review meetings need to be scheduled in order to review from an internal IT perspective the results achieved each month. These internal review meetings should take place before any external review meeting with the business.

[To top of Page]


8.2.1 Where Do I Start - Service Approach
An organization can choose to implement CSI activities in many different ways. One way is to identify a certain service pain point such as a service that is not consistently achieving the desired results. Work with the Service Owner to validate the desired results and the trend results over the past few months. Review any monitoring that has been done. If there hasn't been any end-to-end monitoring in place but some component monitoring, then review what has been monitored and see if there are any consistent issues that are leading to the lower-than-expected service results. Even if there hasn't been any component monitoring being conducted, review your Incident tickets and see if you can find some trends and consistent CIs that are failing more than others that impact the service. Also review the change records for the different CIs that together underpin the service.

Bottom line is that you have to start somewhere. If you don't feel you have adequate data from any monitor or other process, then perhaps the first step is to identify what to monitor, define the monitoring requirements, put in place or begin using the technology required for monitoring.

Be sure to analyze the data to see if the trends make sense and to see if there are any consistent failures or deviation from expected results. Report findings and identify improvement opportunities.

8.2.2 Where Do I Start - Lifecycle Approach
Another approach is to start looking at the hand-off of output from the different lifecycle domains. Service Design needs to monitor and report on their activities and through trend evaluation and analysis, identify improvement opportunities to implement. This needs to be done by every part of the lifecycle especially Service Design, Service Transition and Service Operation. CSI is engaged in this activity. Until the service is implemented we may not know if the right strategy was identified, so we may not have input until later for Service Strategy improvement.

As Service Transition begins working with the product Service Design handed off, Service Transition may identify improvement opportunities for Service Design. CSI can be effective well before a service is implemented into the production environment.

8.2.3 Where Do I Start - Functional Group Approach
Perhaps your organization is experiencing a lot of failures or issues with servers. If this is the case, one could argue a good case to focus CSI activities within the functional group responsible for the servers, as server failures have a direct impact on service availability.

This should be a short-term solution only as CSI activities should be reviewing services from an end-to-end perspective; however it is often easier to have a small group focused on CSI activities. Perhaps this could be a pilot of CSI activities before a full rollout across the organization.

[To top of Page]


No matter if you are implementing CSI around service management or services it is critical that governance is addressed from a strategic view. Organizations are facing the need to expand their IT service management strategies from an operational level to tactical and strategic levels to address business process automation, market globalization and the increasing dependency on IT for the efficient and reliable management and delivery of core business services. To address this requirement formalized service management processes and specialized service and work management tools are being introduced to manage today's complex and distributed IT environments. Introducing service management processes into internal IT departments requires a transformation to the IT culture.

Most internal IT departments are system/technology/management-based organizations which are reactive in nature. Transforming to a service-management-based organization is more proactive in nature and is a step to aligning IT with business. It is also fundamental to achieving the goal of providing efficient and reliable management and delivery of core business services. Implementing an ITSM process governance organization will support the development of and transformation to a process- and service-based organization and provide the organizational infrastructure to manage process improvement initiatives. A comprehensive and integrated approach to the design, implementation and ongoing compliance to accepted ITSM standards includes:

8.3.1 ITSM programme initiative
Corporate initiative statement (The 'IT Service Management' Programme supports the IT Governance Institutes definitions of Enterprise Governance, IT Governance and CobIT).

8.3.2 Business Drivers
The implementation of a standard ITSM process and governance is deemed as imperative to support current and future business plans:

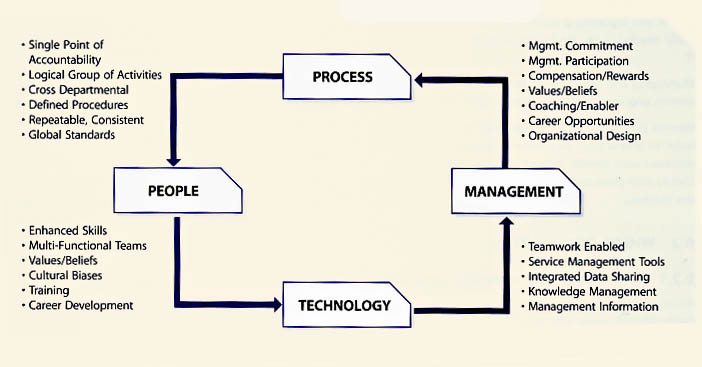

Figure 8.1 Process re-engineering changes everything
Figure 8.1 Process re-engineering changes everything

8.3.3 Process Changes
Implementing CSI will have an impact on many parts of the IT organization. Processes, people, technology and management will undergo change. CSI needs to become a way of life within the organization. This may require new management structure, new technology, changes to processes to support CSI and people will need to be trained and understand the importance of CSI within the organization. If you only focus on changing a process or technology CSI will not be effective. Figure 8.1 identifies some changes that may need to be addressed.

[To top of Page]


1Creating a sense of urgency'...50% of transformations fail in this phase.'
'...without motivation, people won't help and the effort goes nowhere.'
'...76% of a company's management should be convinced of the need...'
2Forming a guiding coalition'...underestimating the difficulties in producing Change...'
'...lack of effective, strong leadership.'
'...not a powerful enough guiding coalition ... opposition eventually stops the Change initiative...'
3Creating a vision'...without a sensible vision, a transformation effort can easily dissolve into a list of confusing, incompatible projects that can take the organization in the wrong direction, or nowhere at all...'
' explanation of 5 minutes should obtain a reaction of "understanding" and "interest".
4Communicating the vision'...without credible communication, and a lot of it, the hearts and minds of the troops are never captured.'
'...make use of all communications channels.'
'...let managers lead by example ...' "walk the talk".'
5'Empowering' others to act on the vision'...structures to underpin the vision ... and removal of barriers to Change.'
'...the more people involved, the better the outcome.'
'...reward initiatives...'
6Planning for and creating quick wins'...real transformation takes time ... without quick wins, too many people give up or join the ranks of those opposing Change.'
'...actively look for performance improvements and establish clear goals...'
'...communicate successes.'
7Consolidating improvements and producing more Change'...until Changes sink deeply into the culture new approaches are fragile and subject to regression...'
' many cases workers revert to old practice.'
8Institutionalizing the Change'...use credibility of quick wins to tackle even bigger problems.'
' how new approaches, behaviour and attitude have helped improve performance.'
'...ensure selection and promotion criteria underpin the new approach.'
Figure 8.2 Eight main reasons why transformation efforts fail

Project management structures and frameworks fail to take into account the softer aspects involved in organizational change such as resistance to change, gaining commitment, empowering, motivating, involving and communicating. Experience reveals that it is precisely these aspects that prevent many CSI programmes from realizing their intended aims. The success of a CSI programme is dependant on the buy-in of all stakeholders. Gaining their support from the outset, and keeping it, will ensure their participation in the development process and acceptance of the solution. The first five steps in Figure 8.2 identify the basic leadership actions required.

Those responsible for managing and steering the CSI programme should consciously address these softer issues. Using an approach such as John P. Kotter's Eight Steps to Transforming your Organization, coupled with formalized project management skills and practices, will significantly increase the chance of success.

Kotter, Professor of Leadership at Harvard Business School, investigated more than 100 companies involved in, or having attempted a complex change programme and identified 'Eight main reasons why transformation efforts fail'. The main eight reasons, which are shown in Figure 8.2 apply equally to ITSM implementation programmes.

8.4.1 Creating A Sense Of Urgency
Half of all transformations fail to realize their goals due to the lack of adequate attention to this step. Not enough people buy into the fact that change is a must. Creating a sense of urgency is concerned with answering the question 'What if we do nothing?' Answering this question for all organizational levels will help gain commitment and provide input to a business justification for investing in CSI.

Examples of the consequences of doing nothing:

The question 'What if we do nothing?' should be answered from the perspective of different stakeholders. This step could be taken in the form of one-on-one dialogues with stakeholders, workshops and team meetings. The aim is to create a real awareness and commitment that the status quo is no longer acceptable.

8.4.2 Forming A Guiding Coalition
Experience shows a need for assembling a group with sufficient power to lead the change effort and work together as a team. Power means more than simply formal authority but also experience, respect, trust and credibility. This team is the guiding coalition for the CSI.

It is important that the team leading the CSI has a shared understanding of the urgency and what it wants to achieve. A guiding coalition team does not have to be comprised solely of senior managers. A guiding coalition should ensure that the organization is motivated and inspired to participate. A single champion cannot achieve success alone. Those initiating a CSI should try to gain full support from the stakeholders, including the business managers, IT staff and the user community. The team must be prepared to spend time and effort convincing and motivating others to participate.

In the beginning this team will be small and should include an influential business or IT sponsor. As the programme buy-in grows, and throughout the programme itself when more and more successes are achieved and benefits realized, this team should be increased to involve a wider range of people and functions. Conscious attention should be given to managing a formal and informal network that forms the basis of a guiding coalition, asking the questions 'Do we have the right people on board?' and, if not, 'Who should we have on board?'

8.4.3 Creating A Vision
The guiding coalition should be responsible for ensuring that a vision is produced describing the aim and purpose of CSI. A good vision statement can serve four important purposes:

Without a sensible and easily understood vision, a CSI implementation can easily dissolve into a list of confusing, incompatible projects that can take the organization in the wrong direction, or even nowhere at all. A vision that is easy to understand is also easy to explain. As a rule of thumb, if one cannot explain the vision in five minutes, the vision itself is not clear and focused enough.

A sound vision statement is important when forming a business justification for CSI, if one is already underway then having clear aims will help set more specific goals. The goals of CSI should be SMART (Specific, Measurable, Achievable, Realistic and Time-bounded) as well as being addressed in terms relating to the business itself.

8.4.4 Communicating The Vision
Although the vision is a powerful tool in helping guide and coordinate change, the real power is unleashed when the vision is effectively communicated to the stakeholders. Every stakeholder should understand the vision.

The sense of urgency ('What if we do nothing?') and the vision ('What's in it for me?') should form the basis of all communication to the stakeholders involved in or impacted by the CSI initiative. These messages should be aimed at motivating, inspiring and creating the necessary energy and commitment to buy in to the change programme. An important aspect of the communication is walking the talk - demonstrating by example.

It is important to make use of all communications channels to get the messages across. Use the organization's newsletters, intranet site, posters, theme and team meetings, and seminars. Aim the communication at the specific needs and wants of each target group. For example, a presentation to computer operators, stressing the benefits of lower management costs and increased business availability, may be less likely to inspire them than the idea that they will have the chance to gain new skills and opportunities, or that they will be supported by the latest advanced management technology so that they spend less time fire-fighting.

8.4.5 Empowering Others To Act On The Vision
Establishing the urgency, creating a guiding coalition, creating and communicating a vision are all aimed at creating energy, enthusiasm, buy-in and commitment to enable successful change. In the empowering phase, two important aspects need to be stressed: enabling and removing barriers.

It is crucial to understand what is meant by empowerment. It is a combination of enabling people and removing barriers. Empowerment means giving people the tools, training and direction, and assurance that they will be given clear and unambiguous fixed goals. Once people are empowered, they are accountable. That is why confirming their confidence before going ahead is important.

8.4.6 Planning For And Creating Short-term Wins
Implementing service management improvements can be a lengthy programme of change. It is important that, during the programme, short-term wins are realized and communicated. Short-term wins help to keep a change effort on track and help keep the energy and commitment levels high. Real transformation takes time. Without short term wins, too many people give up or join the ranks of those opposing the change. Short-term wins can also be used to help:

Try to identify some short-term wins for each service and/or process and plan these into the CSI. It is also important that short-term wins are made visible and are communicated to all stakeholders. When planning to communicate the short-term wins, obtain answers to the questions 'For whom is it a short-term win?' and 'To what degree does it support the overall aims and goals?' and work these answers into the communication.

8.4.7 Consolidating Improvements And Producing More Change
The success of short-term wins keeps the momentum going and creates more change. In CSI it is important to recognize short-, medium- and long-term wins. Changes should sink deeply into the new culture or the new approaches will be fragile and subject to regression:

8.4.8 Institutionalizing The Change
Change needs to be institutionalized within the organization. Many changes fail because they are not consolidated into everyday practice. This is akin to buying a membership to a gym and not going. To institutionalize a change means showing how new working practices have produced real gain and benefits, and ensuring that the improvements are embedded in all organizational practices.

Often the CSI team is disbanded before the working practices are institutionalized; there is a danger that people may revert to old working practices. This has to stop. CSI must be a way of life not a knee-jerk reaction to a failure of some sort.

Some ways of institutionalizing changes:

Signs that the changes have been institutionalized include:

8.4.9 Organization Culture
Organizational culture is the sum of the ideas, corporate values, beliefs, practices and expectations about behaviour and daily customs that are shared by the employees in an organization - the normal way of doing things. Component parts of the culture include:

One could say culture is the heart of the matter or a key issue in implementing CSI. Culture could support an implementation or it could be the bearer of resistance.

Culture is continually named as one of the barriers in realizing any type of organizational change. When an organization has embraced CSI, the new organizational structure and technology receives overwhelming attention and almost no attention is paid to the effect on the culture. Culture isn't good or bad - it's just there.

An organization's culture can be immediately recognized by an outsider by the staff's attitudes and morale; their vocabulary - the phrases and buzzwords they use; and the stories and legends they tell of the organization's heroes. Continual improvement is about moving away from the hero mentality and focusing more on proactive planning and improving instead of always reacting to fix something when it breaks.

Key Concept
One of the keys to changing the culture of an organization is to understand that you do not start out to change the culture, You also start out to change the employee's behaviour. In other words, when implementing Continual Service Improvement around services and service management processes you are asking the staff members to change how they do things. You want them to follow the new CSI activities and procedures, and use the tools appropriately.

As you change employees' behaviour then over time this becomes the organization's new culture. Senior management plays an important part in changing behaviour. Senior management has to be the proper role model: if they don't follow a process then they are giving permission to others to follow their lead. Senior management has to ensure that people are rewarded for following the new process, and for Continual Service Improvement it means ongoing monitoring, analyzing, reviewing, trend evaluation, reporting, identification of improvement opportunities and of course implementing those opportunities.

This will also require the help of your organization's human resource department, as changing employees' behaviour is directly tied to ensuring the job descriptions are up to date, employee's goals and objectives take into consideration service management responsibilities, and expectations include CSI activities. Also employee performance plans should be directly related to fulfilling these responsibilities and expectations. Whether an employee is performing an activity for service improvement or a Change Management activity, this should be recognized and employees rewarded based on the performance. The following two statements are important when thinking about changing employee's behaviour.

  • What gets rewarded gets done. This is why it is important to set up performance plans, performance appraisal systems and compensation plans to tie into CSI activities as well as other service management activities. If you are rewarding an employee as who is keep their box up and running and not on understanding the full end-to-end service management processes, than this is what you will get. It will be hard to change an employee's behaviour when they get rewarded for doing what they do today.
  • You get what you inspect not what you expect. Organizations always expect employees to do certain things, but unless they are actually monitoring and checking to see if the tasks and activities are being done, there is little reason for an employee to change. Remember the State of North Carolina example. They achieved results through training, creating an awareness campaign and letting people know they were tracking results and would be discussing the results with the managers each month.

[To top of Page]


Timely and effective communication forms an important part of any service improvement project. In an effort to transform an organization from performing CSI activities on an ad hoc basis to a more formal and ongoing CSI activities, it is critical that participants and stakeholders are kept apprised of all changes to the processes, activities, roles and responsibilities. The goal of the communications plan is to build and maintain awareness, understanding, enthusiasm and support among key influential stakeholders for the CSI programme.

When developing a communication plan, it is important to realize that effective communication is not just based on a one-way flow of information, and it is more than just meetings. A communications plan must incorporate the ability to deal with responses and feedback from the targeted audiences.

The plan should include a role to:

Key activities for the communications plan include:

In order to change behaviours and ultimately an organization's culture it will require a well-thought-out communication strategy and plan. An effective communication strategy and plan will focus on creating awareness as to why the organization is going down the path of implementing service management, why we want to formalize a CSI process, why ITIL was chosen as the best-practice framework. The plan will also need to address providing service management education through formal training programmes or internal meetings, providing formal training on the new processes and tool that sets new expectations as well as providing updates as to progress and achievements.

When developing your communication strategy and plan it is important to take into consideration how corporate communication works today. In some organizations if you want the CIO to communicate something on behalf of CSI or any service management project it may take a long time to get this accomplished. This needs to be planned for.

Also keep in mind the culture around communicating with the business. In some organizations there are strict guidelines on who can communicate with the business. Often times this is through the Service Level Management and Business Relationship Management processes. No matter what the method is, always have communicating with the business as one of your key communication activities.

8.5.1 Defining A Communication Plan
Defining your plan needs to take into consideration the following items:

Be sure to keep a record of your of all of your communications that go out as this represents how the communication plan has been executed.

You can develop a simple table for your communication plan as shown in Table 8.1. Keep in mind that you will be communicating to various groups within IT. Be sure to include senior management, mid-level managers, line contributors as well as those working or support CSI activities.

Communication Transformation
The strategic management level usually initiates the communication about new initiatives and this should be true for implementing CSI within your organization. The CSI initiative is handed down from the strategic level to the tactical level and then to the operational level. It is more the rule than the exception that each level goes through its own transformation process. It is important that the same message is being sent and received as the vision is communicated down the organization. The outcome of this process is the cause and often the demand for the next level in an organization to transform. Information about this process and how people are dealing with it are seldom handed down. Unfortunately the higher level gives little feedback about this process to the next level.

What also happens is that the content of the vision and reasons for the organizational change becomes less understood as it moves down through the organization. Only parts of the rationale behind the organizational change come through to the operational level. The below figure depicts the fact that only part of the original content of the vision is handed down ('the shadow of the upper level') to the operational level. As the message is passed through the organizational levels, the clarity and content of the vision is blurred even further (see Figure 8.3).

Because each management level has its own separate transformation processes they fail to appreciate the feelings of the other levels. This is most evident for operational level staffs, who feel particularly vulnerable if they have not been involved in the discussions. And yet it is the commitment and energy of the operational level that are essential to the success of any organizational change.

MessengerTarget audienceMessageMethod of communicationDate and frequencyStatus
UOAll of ITCSI initiative is kicking offTown hall meetingMonth/dayPlanned
Table 8.1 Sample table for communication plan

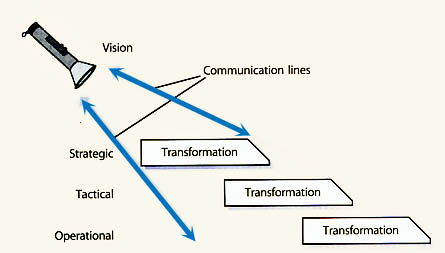

Figure 8.3 Vision becomes blurred
Figure 8.3 Vision becomes blurred

[To top of Page]


Developing a governance structure is important for formalizing CSI in your organization. CSI will require that key roles are filled for trend evaluation, analysis reporting and decision making. Process compliance is critical for ensuring the proper output for process metrics to be used for identifying process improvement initiatives. Technology will need to be in place for monitoring and reporting.

Communication is critical to help change employees behaviour. Communication will require identifying the target audience, who the messenger is, what message is being communicated and what is the best way to communicate the message.

Figure 8.4 shows the roles and key inputs that are involved in the different phases of Continual Improvement.

Figure 8.4 CSI Model
Figure 8.4 CSI Model
